Electromagnetic holder S5

Electromagnetic fire door holder

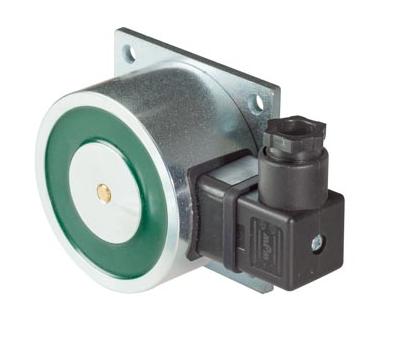

Model S5

MODEL S5 is supplied with keeper plate (S02160 or S00160) and it's not equipped with release button. It's available with a holding force of 1500 Newton.
The electrical connection is made through the connector with strain relief and protection circuit. The standard operation voltage is 24Vdc. The basis for fixing the magnet is made of galvanized steel.
The main features of this model are the coil incorporated in the resin and the connector with a high protection value (IP65). These solutions make the electromagnetic particularly resistant to moisture and water jets.
VARIANTS AND AVAILABLE ACCESSORIES:
- different supply voltage
- supply voltage A.C.

Pages S5
